1019 Oil Cooler & Power Steering Hose

Application

1019 Oil Cooler & Power Steering Hose
1019 Oil Cooler & Power Steering Hose

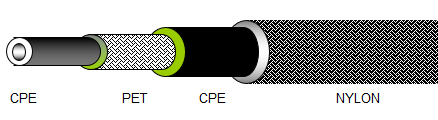

CPE | PET | CPE | NYLON


  • CPE construction with a polyester braid and Nylon braided outer textile cover
  • Excellent kink and abrasion resistance.
  • Can with stand 750 hours of hot oil circulation at 300 degrees F
  • Exceeds SAE J1019 performance, approved to TMS6016 type VI
  • Designed to operate in the temperature range of -400 °C to +1500 °C (-400 F to +3000 F)
  • Designed for transmission engine oil cooler: Engine oils: SAEW30 & 40 plus synthetics or power steering fluid applications in low pressure applications
  • Available as a straight hose only. Flexible, easy to route hose

Size Inside Diameter Outside Diameter Weight psi
Inch mm Inch mm Inch mm
min max min max min max min max lbs/ft kg/m
1/2 12.7 0.490 0.530 12.4 13.5 0.750 0.812 19.0 20.6 0.16 0.24 400
5/8 15.9 0.615 0.655 15.6 16.7 0.875 0.938 22.2 23.8 0.20 0.30 350
3/4 19.1 0.740 0.780 18.8 19.9 1.000 1.093 25.4 27.8 0.22 0.33 300
1 25.4 0.990 1.030 25.2 26.2 1.250 1.343 31.8 34.1 0.30 0.45 225
