2023 Transmission Oil Cooler

Application

2023 Transmission Oil Cooler
2023 Transmission Oil Cooler

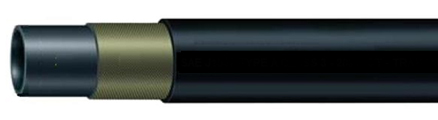

TUBE: AEM | Reinforcement: Aramid | Cover: AEM


  • AEM Construction with a Single Aramid Braid Reinforcement
  • DOTG-Free Compounds for Tube and Cover
  • Exceptional Resistance to Traditional and the Latest OEM Oils
  • Temperature Range: -40 °F to 350 °F (-40 °C to 175 °C)
  • Available as a Bulk Straight (2023) or Formed Product (2026)

Nom Inside Diameter Outside Diameter
Size Inch mm Inch mm
Inch mm min. max. min. max. min. max. min. max.
3/8-012 9.1 0.343 0.374 8.7 9.5 0.591 0.630 15.0 16.0
3/8-013 9.5 0.358 0.390 9.1 9.9 0.602 0.650 15.3 16.5
1/2 12.3 0.469 0.500 11.9 12.7 0.724 0.764 18.4 19.4
