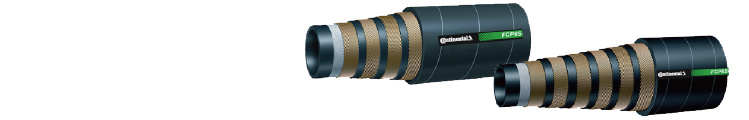

FCP6S

Marking: FCP6S-12 6100 PSI Meets or Exceeds SAE 100R15 3/4" (DN 19 mm) 42.0 MPa 420 BAR Flame Resistant MSHA 2G-IC-14C/46

High temperature and high pressure applications subject to suvge and flexing such as construction equipment, mining and other inodustrial market.

Inner tube: Synthetic rubber
Reinforcement: Four alternating layers of spiralled high tensile steel wire (sizes 3/8", 1/2", 5/8", 3/4" and 1") and six alternating layers of spiralled high tensile steel wire (size 1 1/4", 1 1/2" and 2")
Cover: Synthetic rubber
Temperature range: -58°F to +250°F (-50°C to +121°C)
Applicable Standards: SAE J517 100R15, GB/T 10544 R15, certificate of US MSHA
Safe factor: 4:1

Product Number	Hose ID				W.D.		C.O.D	Max W.P.		Min B.R.	Weight
Product Number	Hose ID				W.D.		C.O.D	Max W.P.		Min B.R.	Weight	mm	in	Min. mm	Max. mm	Min. mm	Max. mm	Max. mm	Mpa	psi	mm	kg/m
FCP6S-06-10	10	3/8	9.3	10.1	16.9	18.1	22.2	42	6100	90	0.72
FCP6S-08-13	12.5	1/2	12.3	13.5	19.4	21	25.4	42	6100	90	0.83
FCP6S-10-16	16	5/8	15.5	16.7	23	24.6	27.3	42	6100	120	1.08
FCP6S-12-19	19	3/4	18.6	19.8	28	32.9	36.1	42	6100	120	1.59
FCP6S-16-25	25	1	25	26.4	34.9	38.9	42.9	42	6100	150	2.09
FCP6S-20-32	31.5	1 1/4	31.4	33	44.7	48.4	51.5	42	6100	290	3.42
FCP6S-24-32	38	1 1/2	38.2	39.2	53.1	56.3	59.6	42	6100	320	5.05
FCP6S-32-51	51	2	50.4	52	66.9	69.3	72.7	42	6100	500	7.02
