CTA-150

CTA-150

Application

Suitable for transfer of highly aggressive acids and solvents, such as:
Sulfuric acid and hydrofluoric acid.

Major Applications:
Petrochemical and chemical industries.


Technical Specifications

PTFE coatings, plastic films and polypropylene fabrics. Spirals of internal and external
reinforcement in stainless steel AISI 304/316. External cover resistant to weather/abrasion.
Hoses can be coated with nylon rope or helical spiral in polyethylene.

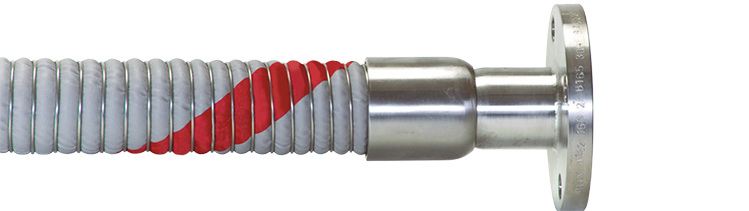

  • Color: Grey with red trim.
  • Pressure testing: 1,5 times the operating pressure.
  • Electrical continuity: R less than 100 Ohms.

ØInternal Working pressure Weight Continuous max. length
Inch bar kg/m m
3/4” 10,5 0,60 10
1” 10,5 0,70 10
1 ½” 10,5 0,90 20
2” 10,5 1,70 20
2 ½” 10,5 2,40 20
3” 10,5 2,90 20
4” 10,5 4,20 20
6” 10,5 9,60 20
8” 10,5 12,00 20
10” 10,5 16,80 10
