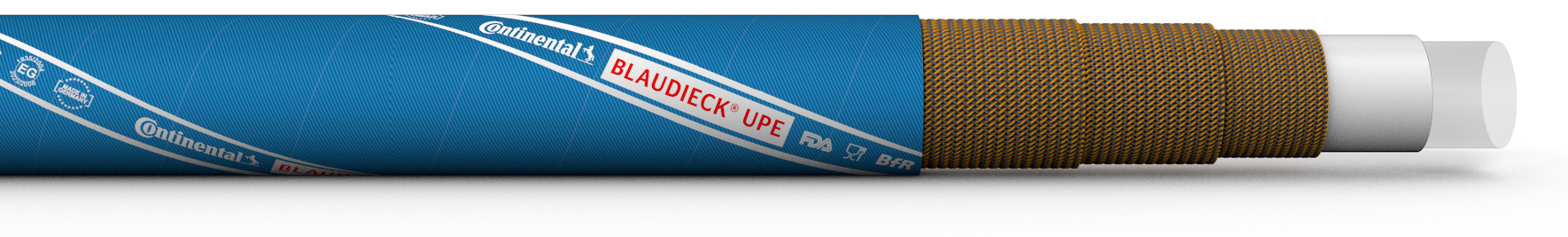

Label:
2 white stripes on a blue background, applied in a spiral "Continental BLAUDIECK® UPE FDA Glas-/Gabel-Symbol BfR EG 1935/2004 2023/2006 Made in Germany"
STANDARD / APPROVAL
-
Regulation 177.1520
-
Recommendation III
-
1935/2004
2023/2006
10/2011
APPLICATIONS
Beverage industry, Convenience food industry, Foodstuff industry, Industrial processing of flavorings, seasonings, gourmet food, fruit juices, lemonades & confectionery
FLOW MEDIUM
Alcohol, Beer, Buttermilk, Cheese, Chocolate, Citric acid , Cottage cheese, Dairy ice cream, Dough , Egg yolk, Fats, Fatty foods, Fishmeal, Flour, Foodstuffs, Fruit ice cream, Fruits, Gelatine, Granulate (Salt, Sugar), Ice, Juice, Ketchup, Lactic acid , Milk, Milk powder, Mustard, Oils, Powder, Powder media, Rice pudding , Spirits, Sugar syrup, Tallow, Vinegar , Yoghurt
INNER LINING
UPE, white, neutral to taste and odour, non-porous, plasticizer-free, smooth
REINFORCEMENTS
Synthetic fibres
COVER
NBR, blue, fabric patterned, abrasion resistant, resistant to ozone, weather and UV
FURTHER PROPERTIES
2 years warranty, Lining and cover both resistant to oil and fats, Recommended fittings system PAGUFIX®, Resistant to aggressive chemicals, Resistant to commonly used cleaning and disinfecting products, Suitable for pure alcohol up to 100%
WORKING PRESSURE UP TO
16 bar / 232 psi
TEMPERATURE RANGE
from -30 °C / -22 °F up to +95 °C / +203 °F
up to +110 °C / +230 °F (max. 60 minutes
DAMPABLE UP TO
+130 °C / +266 °F (max. 30 minutes)
