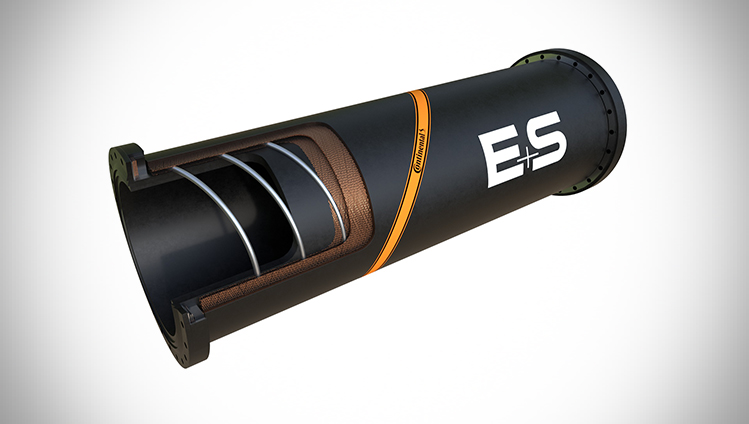

Suction & Discharge Hose – Smooth Type with Spring-Wire Helix

Suction & Discharge Hose – Smooth Type with Spring-Wire HelixSuction and Discharge hoses with spring-wire helix offer a weight saving alternative to hoses with round steel-rings. They are utilized as a joint (smooth type) for connection of submerged mobile pumps or rollable solution for construction industry.




Features & Benefits

  • Optimal for suction & discharge applications
  • For floating pipeline with ext. floating devices
  • Ideal for coiling / reeling (limited stacking)
  • Easy fit of external couplings (Conti ULTIMATE type)


Specifications

  • Smooth, extruded lining, highly resistant to abrasion
  • Additional oil and heat resistant rubber compounds available
  • Abrasion layer thickness from 5 to 50 mm
  • Maximum available length up to 40 m
  • Working pressure up to 25 bar
  • Temperature range from -20°C up to +90°C
  • Hose ID range from 80 to 1600 mm
  • Production tolerance: DIN EN ISO 28017 (Dredge Hoses)
