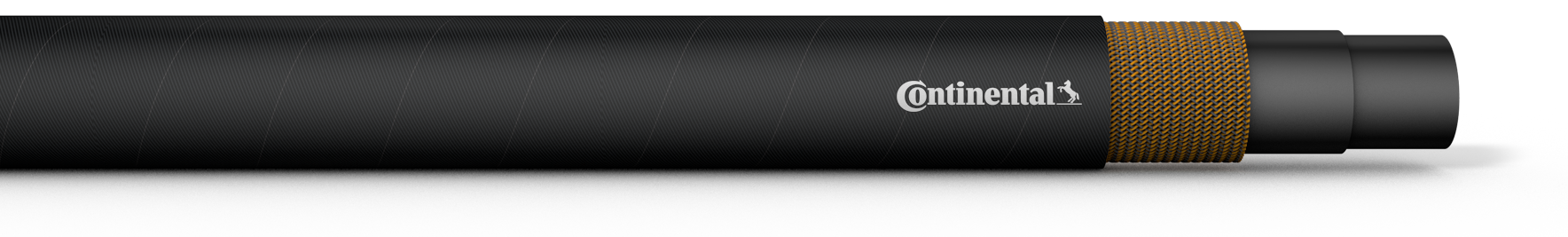

CONTI® FUEL CKR 2167

Fuel hose

CONTI® FUEL CKR 2167
Label: Abmessung- >FKM/ECO/AR/AEM< W/J/TC

APPLICATIONS

Diesel fuel pipes

FLOW MEDIUM

Biodiesel resistant, Diesel fuel, Fuels

INNER LINING

FPM/ECO, black

REINFORCEMENTS

Aramid

COVER

AEM, black, smooth

FURTHER PROPERTIES

Heat-resistant, Highly flexible, low permeability

WORKING PRESSURE UP TO

10 bar / 145 psi

TEMPERATURE RANGE

from -40 °C / -40 °F up to +150 °C / +302 °F
up to +175 °C / +347 °F

nominal width inner-Ø wall thickness length helix working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
1/4 6 3.0 80 10/145 70/1,015 60 120
5/16 8 3.5 80 10/145 70/1,015 70 166
5/16 8 3.5 80 10/145 70/1,015 70 178
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
