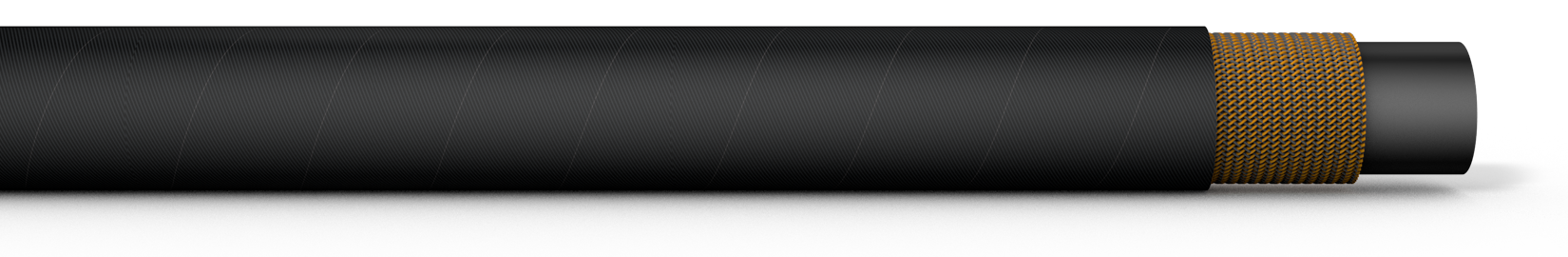

CONTI® FUEL CKR 2269

Fuel hose

CONTI® FUEL CKR 2269
Label: Dimension- >NBR/CMD/CR< W/J/TC

STANDARD / APPROVAL

  • Certificate
    73379 Typ A1

FLOW MEDIUM

Biodiesel resistant

INNER LINING

NBR, black

REINFORCEMENTS

CMD

COVER

CR, black, smooth

FURTHER PROPERTIES

Highly flexible, Suitable for biodiesel and methyl ester of rapeseed (RME) upto 70°C

WORKING PRESSURE UP TO

6 bar / 87 psi

TEMPERATURE RANGE

from -40 °C / -40 °F up to +90 °C / +194 °F
up to +110 °C / +230 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
3/16 4 3.0 80 6/87 30/435 50 92
1/4 6 3.0 80 6/87 30/435 55 124
1/4 6 3.0 80 6/87 30/435 55 110
5/16 7 3.0 80 6/87 30/435 70 134
5/16 8 3.0 80 6/87 30/435 70 140
5/16 8 3.0 80 6/87 30/435 70 136
3/8 9 3.0 80 6/87 30/435 80 160
3/8 10 3.0 20 6/87 30/435 80 151
1/2 11 3.5 20 6/87 30/435 80 208
5/8 16 3.5 20 6/87 30/435 80 263
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
