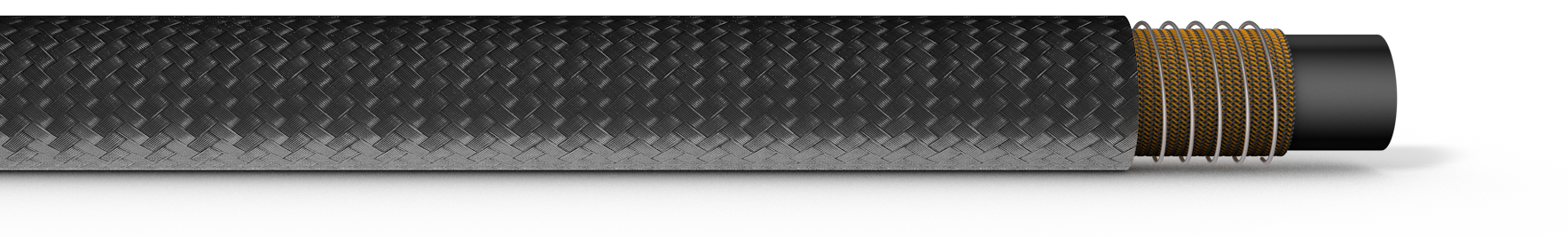

CONTI® FUEL GCW 2225

Fuel hose

CONTI® FUEL GCW 2225
Label: Dimension- >NBR/CO/ST< W/J/TC

FLOW MEDIUM

Biodiesel resistant, Diesel fuel

INNER LINING

NBR, black

REINFORCEMENTS

CO, With integrated steel wire helix

FURTHER PROPERTIES

Suitable for biodiesel and methyl ester of rapeseed (RME) upto 70°C, Vacuum stable

WORKING PRESSURE UP TO

15 bar / 218 psi

TEMPERATURE RANGE

from -30 °C / -22 °F up to +70 °C / +158 °F

nominal width inner-Ø wall thickness length working pressure min. burst pressure min. bending radius weight
zoll/inch mm mm m bar/psi bar/psi aprx. mm aprx. g/m
5/8 16 4.5 15/218 45/653 80 350
1 25 5.3 15/218 50/725 120 600
1 1/4 32 5.3 15/218 45/653 170 820
2 50 5.8 10/145 30/435 320 1,200
2 3/8 60 6.3 8/116 25/363 360 1,630
Pressure and vacuum based on room temperature / High pressure and/or temperature lead to reduced component durability / Other dimensions upon request
