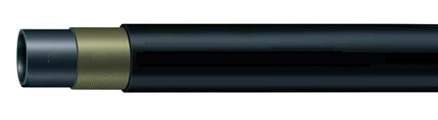

TYPE IX Low Expansion Pressure Hose

Application

TYPE IX Low Expansion Pressure Hose
OEM-quality, high-pressure, low-expansion power steering hose used in automotive, light truck and some off-road vehicles.

  • Construction: CSM, PA, CSM, low expansion construction for improved steering response
  • Tube: CSM
  • Cover: CSM
  • Reinforcement: Two-braid polyamid yarn
  • Features: Exceptional resistance to a wide range of fluids for current and late-model automotive applications
  • Temperature Range: -40 °F to 250 °F (-40 °C to 120 °C) average, and maximum excursions to 266 °F (130 °C)
  • Resists a variety of commercial power steering fluids (ATF). Not compatible with DEXRON VI (ATF)
  • Meets VDA- Technical Specification LH03 Index "m"


Imperial

Nom Size ID (Inch) OD (Inch) WP Min. Burst Min. Bend Weight
Inch min. max. min. max. psi psi rad (Inch) lbs./ft.
3/8 0.358 0.390 0.661 0.709 1980 7950 4.0 0.18

Metric

Nom Size ID (mm) OD (mm) WP Min. Burst Min. Bend Weight
mm min. max. min. max. bar bar bad (mm) kg/m
10 9.1 9.9 16.8 18.0 135 540 100 0.27
