2021 Transmission Oil Cooler

Application

2021 Transmission Oil Cooler
2021 Transmission Oil Cooler

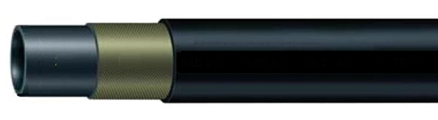

TUBE: EA | Reinforcement: Aramid | Cover: EA


  • Vamac Construction with a Single Aramid Braid Reinforcement
  • Approved to Chrysler MSEA250, Chrysler MS.50033, GMW16171 B1A, Ford ESBT4P-7H420-AB, GM6260M, SAEJ1532 Type A Class 3. Tested with old and new fluids, ATFIII, ATF+4, Mercon III, Mercon LV or Ford “A”, Dexron III, Dexron VI. Compound tested with oil CP442 synthetic oil
  • Temperature Range: -22F to 350F (-30 °C to 175 °C) on these ID’s 5/16, 3/8, ½ ID’s
  • Temperature Range: -40F to 330F (-40 °C to 165 °C) ID 5/8 ID to SAEJ1532 Type A Class 3
  • Available as a Bulk Straight or Formed Product ID’s 5/16, 3/8, 1/2 “ only Formed Spec: 2028

Nom Inside Diameter Outside Diameter Working Pressure M in Burst M in Bend
Size Inch Inch psi psi rad (Inch)
Inch min. max. min. max.
5/16 0.303 0.319 0.555 0.585 250 1000 1.3
3/8 - 012 0.348 0.372 0.600 0.642 250 1000 1.6
3/8 - 013 0.359 0.391 0.602 0.650 250 1000 1.6
1/2 0.469 0.500 0.724 0.764 250 1000 2.0
5/8 0.615 0.655 0.874 0.937 250 1000 2.5
