Conti® Synchrotwin Standard and Conti® Synchrotwin CXP/CXA

Whether in printing machines, ride-on mowers, or other demanding applications – when high tensile forces and abrupt stops are required, conventional double-sided timing belts quickly reach their limits. The Conti Synchrotwin provides the ideal solution for counter-rotating drives with reverse rotation – powerful, durable, and low-maintenance.

Even the standard version with a length-stable glass cord tension member ensures reliable performance in the lower and medium power range. For higher requirements, two additional variants are available:

• CXP: Featuring an extra-stiff high-performance synthetic rubber
• CXA: Featuring a high-strength aramid tension member for maximum length stability

Thanks to identical tooth profiles on both sides, no special pulley is required – saving time and costs.

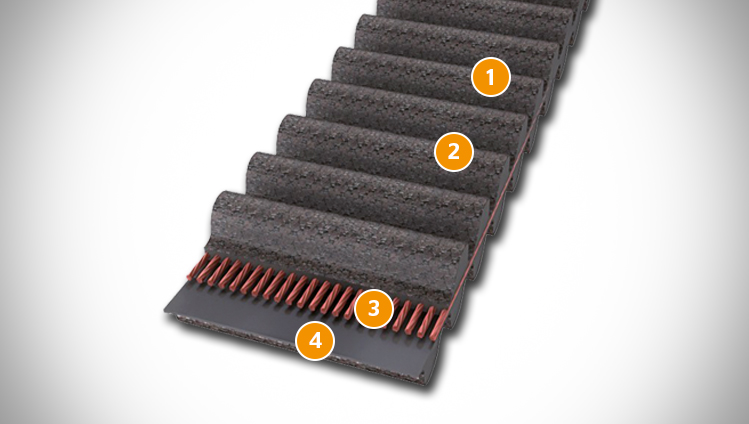

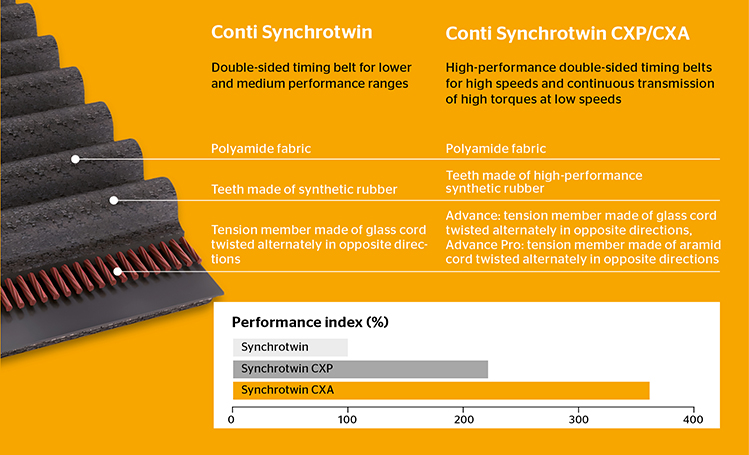

Construction

Features

• Available up to 6,000 mm in length
• Compact drive solutions that save space and weight
• Maintenance-free – no need for coolants or lubricants
• Temperature resistant from −20 °C to +100 °C
• Oil resistant according to ASTM test**
• Ozone resistant according to DIN 53509-T1, Category 0

_{**Oil resistance according to Continental test Swelling ASTM 1 = IRM Oil 901, Category A (Synchrotwin) and Category B (Synchrotwin CXP/CXA).}

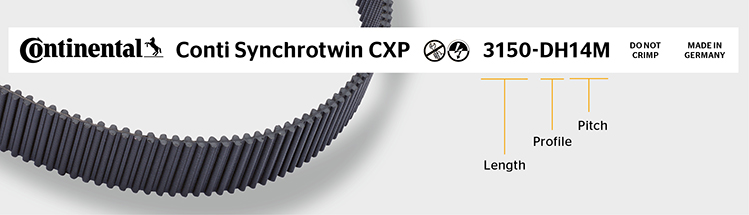

Identification

Wide Range of Applications:

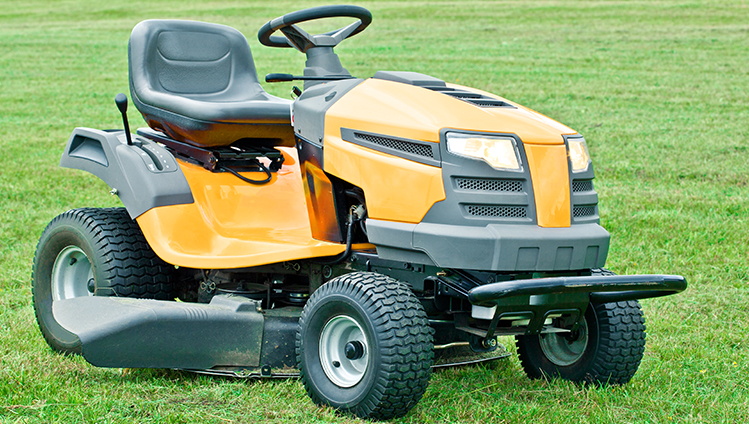

• Ride-on mowers
• Garden equipment
• Textile machines

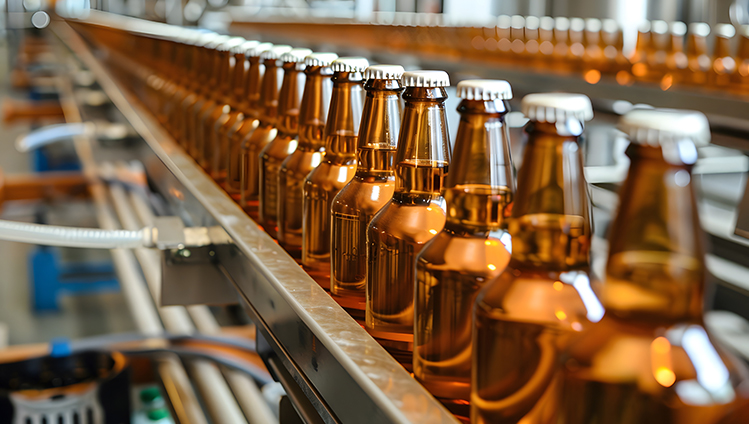

• Packaging machines
• Machine tools
• Pumps
• Office machines

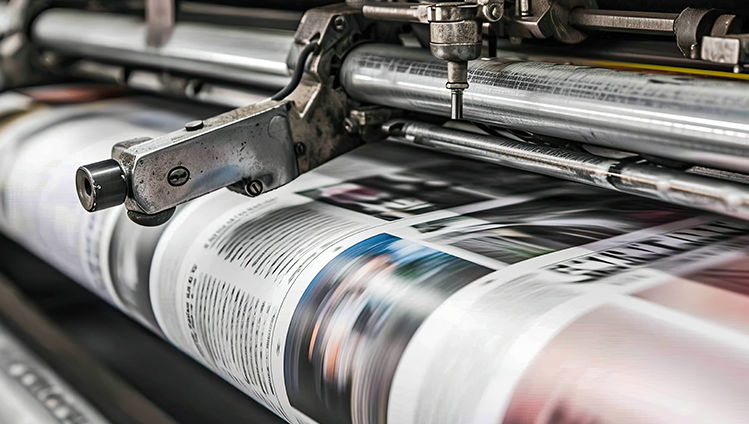

• Printing machines
• Assembly units

Dimensions



DHTD

(Synchrotwin Standard, CXP, CXA*)

Profile	Length range Lp (mm)
DHTD D5M	565 - 2000 mm
DHTD D8M	600 - 4400 mm
DHTD D14M	1050 - 5740 mm

_{*only available for 8M & 14M}


DSTD

(Synchrotwin Standard, CXP, CXA)

Profile	Length range Lp (mm)
DTSD DS8M	600 - 2848 mm

DH

(Synchrotwin Standard)

Profile	Length range Lp (1/10 inch / mm)
DH	270 - 750 / 685,8 - 1905 mm
