Layer Springs

Ensure maintenance-free bearing and damping of primary suspension systems.

Used for movements and technical requirements in vertical direction. It has to be applied in combination with another guiding component as e.g. a bushing.

Layer Springs

Benefits

  • Reasonably priced suspension element with good reliable properties
  • Able to to bear heavy loads
  • High stiffness values in vertical direction possible


Specifications

  • Size from Ø150 mm up to Ø390 mm and Height from 25 mm up to 280 mm available
  • Vertical stiffness values up to 1800 N/mm available
  • Static deflection depends on spring height

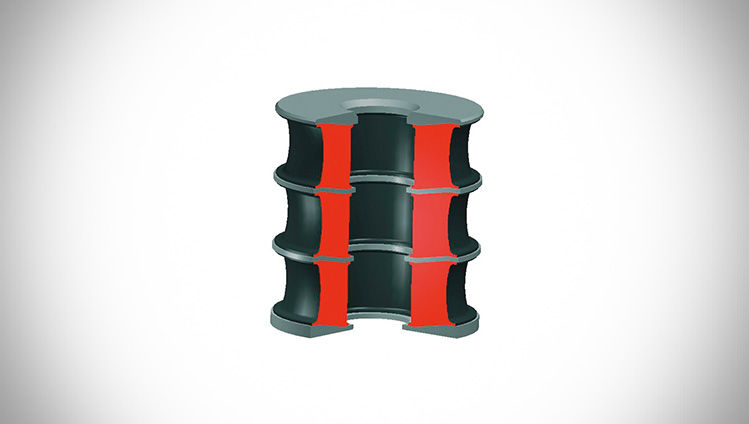

  • layer-springs

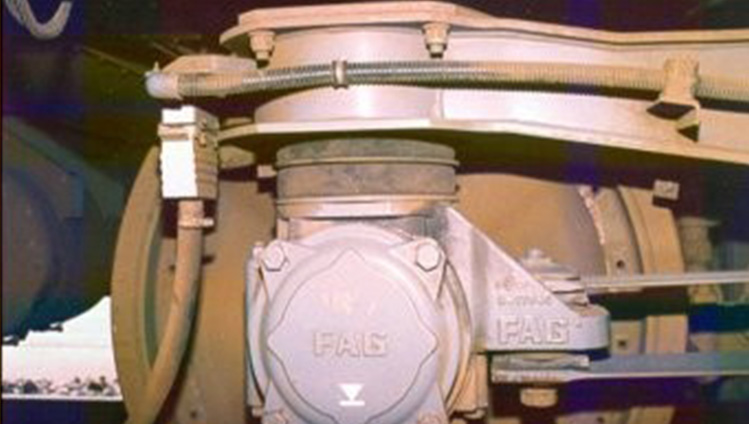

  • layer-spring-application
