Armored Hose

Armored Hose

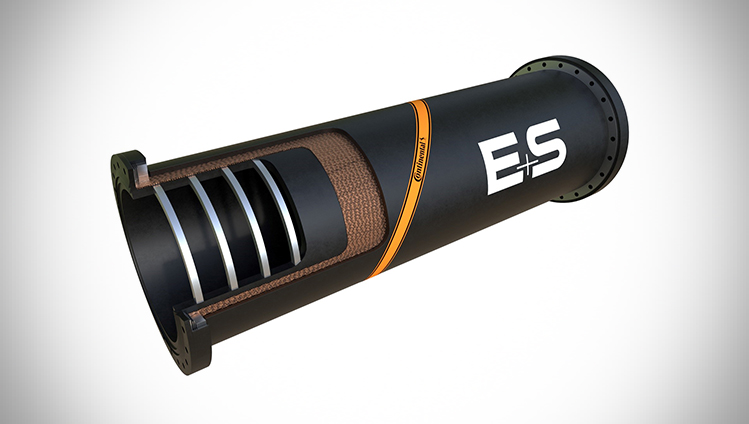

Armored hoses are used in dredging and mining projects around the world and are particularly suited to the safe transportation of mineral ores and slurries which may have sharp interfaces, high volume capacity, heavy specific gravity and high impact loads, such as diamond ore. Integral square steel rings in the armored hoses ensure high dimensional stability and resistance.






Features & Benefits

  • Transporting highly abrasive materials such as coral, cap rock, lava and sharp-edged rock
  • Pneumatic transport of hard granulated materials or powders
  • Mining works in deep sea at extreme outer pressures
  • All situations where the floating line must be kept
  • Straight and prevented from kinking under all internal and external conditions
  • Also available as heavy-duty compensator


Specifications

  • Smooth, extruded lining, highly resistant to abrasion
  • Additional oil and heat resistant rubber compounds available
  • Abrasion layer thickness from 5 to 50 mm in steel rings
  • Maximum available length up to 40 m
  • Working pressure up to 25 bar
  • Temperature range from -20°C up to +90°C
  • Hose ID range from 80 to 1600 mm
  • Production tolerance: DIN EN ISO 28017 (Dredge Hoses)
