Hoses for LPG Transfer

Standard EN1762, BS4089

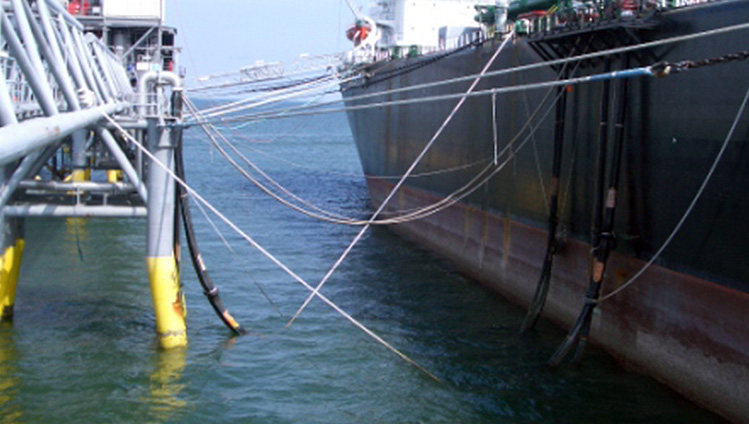

LPG suction and discharge hoses for ship-to-shore transfer.

Continental hoses have been widely used over many years for LPG transfer in dock-side applications. LPG hose construction for a given application depends upon the product being transferred and the operational parameters. In particular, refrigerated LPG has a different set of hose system transfer requirements to that of LPG at ambient temperatures.

Hoses for LPG Transfer
Hoses for LPG Transfer

Specifications

Internal diameter 4” to 12”
Design pressure 25 bar
Max. available length up to 12.2 m (40ft)
Designs smoothbore and roughbore
LPG hose designs cryogenic and non-cryogenic


Features & Benefits

Features of LPG hose construction may include:

  • End fitting materials for low temperature service
  • Reinforced lining applied along the hose bore to reduce the risk of explosive decompression
  • 'Bleeder Cords' to exhaust any permeated gas to the hose ends
