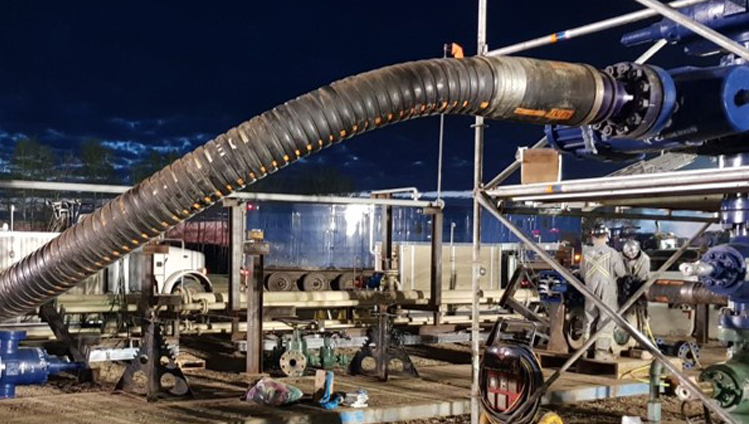

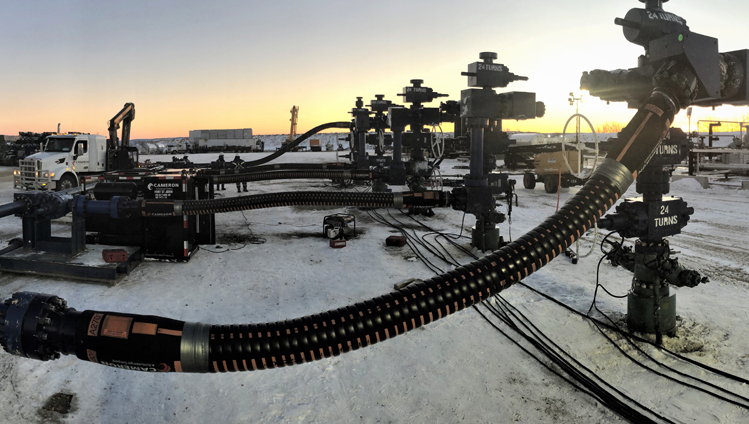

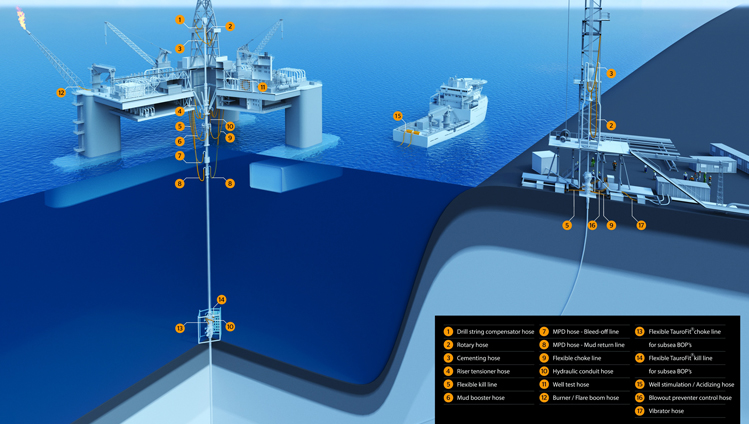

General construction of a High Pressure Well Service Hose

The high pressure hoses are a bonded construction comprising steel and elastomeric materials. The principal characteristic of bonded construction is the build-up of individual layers in the flexible hose wall which are then combined into one unit through vulcanisation. Hose assemblies are manufactured as a single bonded unit to specified lengths where the couplings are a chemically bonded integral part of the hose.

General Construction of a Well Service Hose

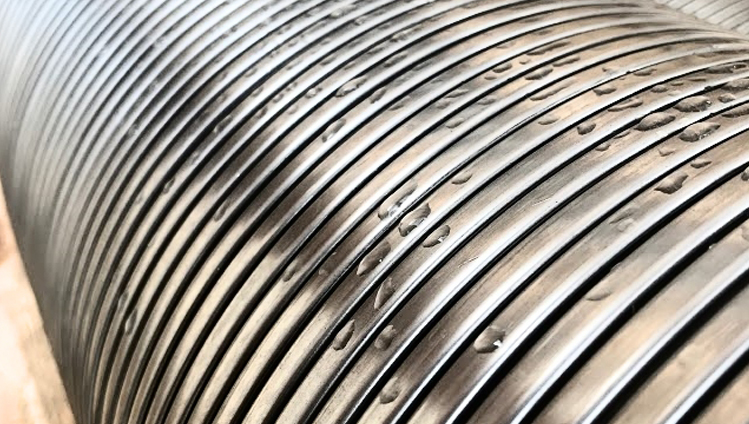

  1. Stainless steel interlock stripwound tube

    Protects the polymer lining from mechanical damage, prevents blistering in case of high pressure gas service and decompression with vacuum service, supports the wall of the flexible hose. This layer is optional and present only for rough bore hoses, such as for well test hoses.

  1. Polymer lining

    Protects the hose construction from corrosive and abrasive effects of the conveyed medium. The thickness of lining depends on the internal pressure, the inside diameter and the conveyed medium. The lining material is selected to withstand chemical and heat effects of well effluents, well stimulation fluid, acids or whatever substance is conveyed through the hose.

  1. Textile plies

    To distribute the forces of internal pressure.

  1. Stiffening spiral (not shown in the picture)

    To protect the hose against collapse under axial pulling force and/or as a result of external pressure. Prevents kinking even in sharp bends.

  1. Elastomeric cushion plies

    To ensure adhesive bonding between different plies.

  1. High strength steel cable reinforcements

    These are the most important load-bearing elements, they determine internal pressure resistance. The cables are either zinc or brass coated to provide exceptional corrosion resistance.

  1. Gas leading plies

    To allow diffused gases to migrate to venting points.

  1. Fire resistant plies

    Optional layer, protects the hose in case of exposure to flame at 704°C (1300°F) for at least 30 minutes.

  1. UV resistant elastomeric cover

    Protect the flexible hose line from impact, abrasion, weather, seawater, oil, etc.

  2. Outer stainless steel stripwound protection

    Optional layer, protect the hose against external mechanical damage, material AISI 316L. For different types of available external protection, contact your Continental representative.
